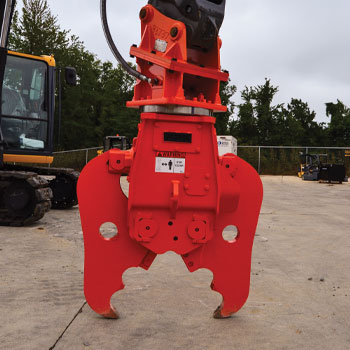

X-4AFR
Model
X-4AFR
Recommended Carrier Weight
9,000 - 12,000 lb
4 - 5.5 metric tons
Rotation
360° mechanical/free rotation
Visit the Attachment Wizard to see which NPK excavator mounted concrete crusher is best suited for your carrier!
Visit and subscribe to NPK's YouTube channel for videos of concrete pulverizers in action!
Visit NPK's photo website for searchable concrete pulverizer photo galleries!
Visit the Concrete Crusher Publications page for sales brochures and operation & maintenance manuals.
If you require a booster service manual or would like a hard copy of the operation and maintenance manual, please contact the Sales department at 440-232-7900 or by email at sales@npkce.com.
| Working Weight | 975 lb | 440 kg |
| Max Jaw Opening | 17.3 in | 440 mm |
| Jaw Width | 15.7 in | 398 mm |
| Cycle Time (seconds) | 1.3 close / 0.7 open | |
| Oil Flow | 8 - 18 gpm | 30 - 70 lpm |
| Operating Pressure | 3,045 psi | 210 bar |
| Maximum Crushing Force | 76,435 lbf | 340 kN |
