Discontinued Hammers

Discontinued Hydraulic Hammers | Discontinued Hydraulic Breakers


Over the years, NPK Hydraulic Hammers have evolved through several different model series.

This page displays Hydraulic Breaker models which were marketed in the past by NPK Construction Equipment.

NPK dedicated mounting kits enable our hydraulic breakers to be mounted as one or more of the following (determined by size):

  • mini excavator attachments
  • skid steer attachments
  • backhoe attachments
  • full size excavator attachments
  • See the Attachment Wizard to determine which hydraulic attachments are compatible with your carrier.


Potential applications include:

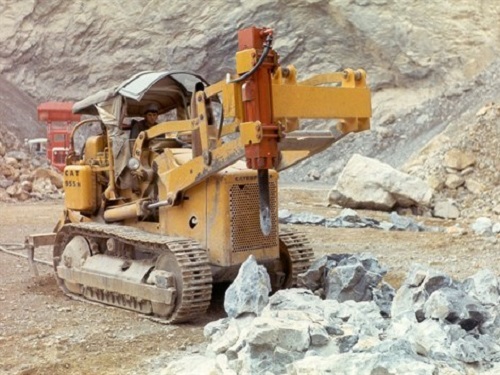

  • Rock breaking
  • Slag breaking
  • Reducing oversize material
  • Concrete breaking and recycling
  • Road construction
  • Sidewalk and curb construction
  • Commercial / selective demolition
  • C&D recycling / sorting
  • Underwater applications
  • Site excavation
  • Scaling and tunnnel excavation
  • Trenching
  • And many more!



Hydraulic Hammer Service Videos  Hydraulic Hammer Operation Videos  Hydraulic Hammer Photo Galleries  Hydraulic Hammer Publications


Visit and subscribe to NPK's YouTube channel for hydraulic hammer operation and service videos and videos of hydraulic breakers in action!

Visit NPK's photo website for searchable hydraulic hammer photo galleries!

Visit the Hydraulic Hammer Publications page for sales brochures, operators manuals, and service bulletins.



Videos de servicio

Visita y suscríbete al canal de YouTube de NPK para videos de instrucciones de servicio para martillos hidráulicos.



Visit each hydraulic hammer model page below for additional images and specifications.  If you require a service manual or would like a hard copy of any other manual, please contact the Sales Department at 800-225-4379 or email to sales@npkce.com.

Image Model Working Weight Recommended Carrier Weight
GH06
GH06 235 lbs 1.2 - 2.2 US tons
GH07
GH07 270 lbs 1.5 - 2.75 US tons
GH1
GH1 450 lbs 2.5 - 4.5 US tons

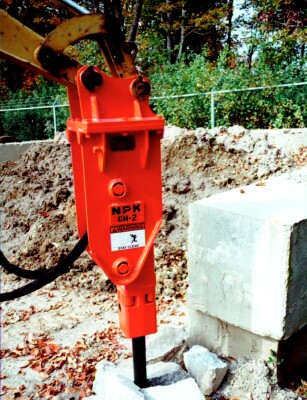

GH2
GH2 525 lbs 3 - 6 US tons

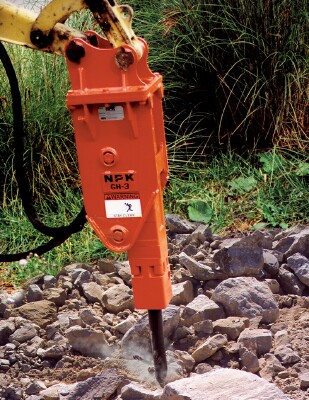

GH3
GH3 800 lbs 4 - 7.5 US tons

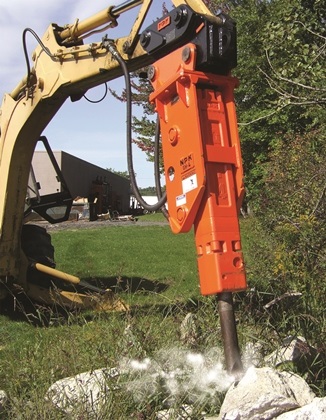

GH4
GH4 1,250 lbs 6.5 - 11 US tons

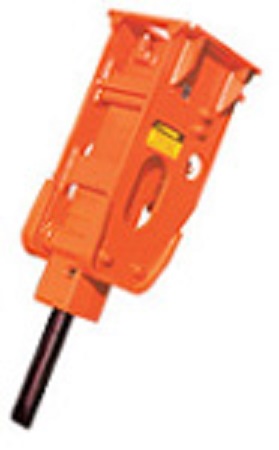

E200
E200 235 lbs 1.1 - 2.2 US tons

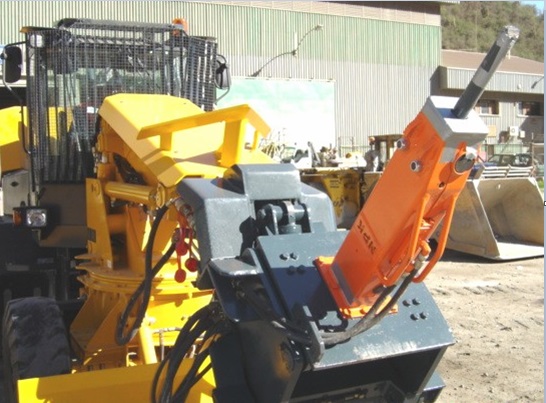

E201
E201 270 lbs 1.4 - 2.8 US tons
E202
E202 425 lbs 2.5 - 4.5 US tons

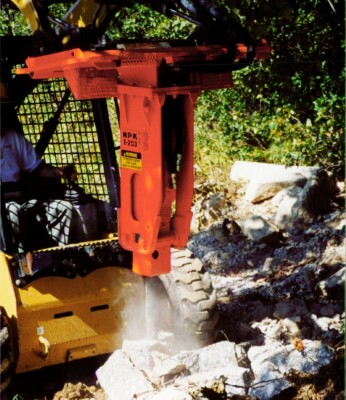

E203
E203 525 lbs 3 - 6 US tons

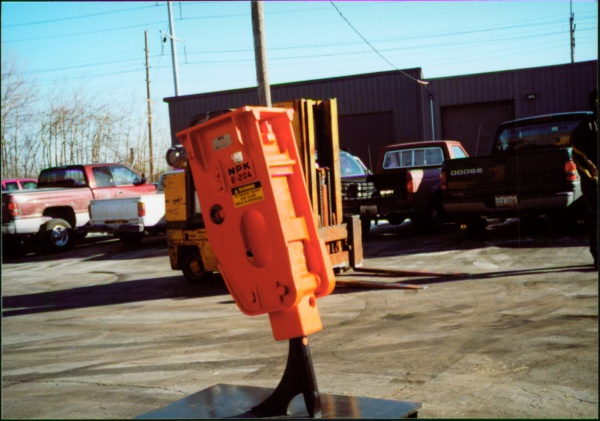

E204
E204 800 lb 4-7.7 US tons

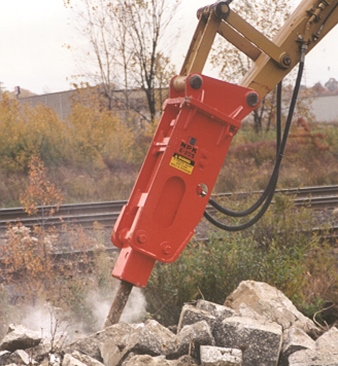

E205
E205 1,200 lbs 6.6 - 11 US tons

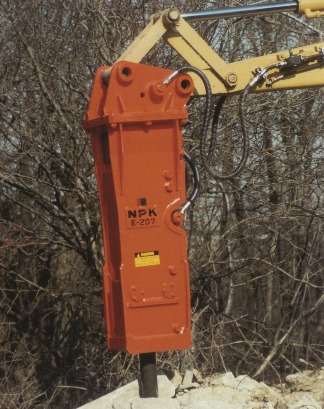

E207
E207 2,100 lbs 10 - 16 US tons

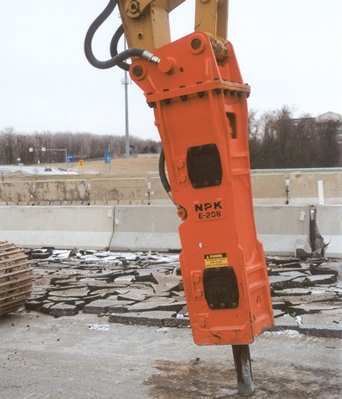

E208
E208 2,900 lbs 14 - 21 US tons
E210A
E210A 3,450 lbs 20 - 28 US tons

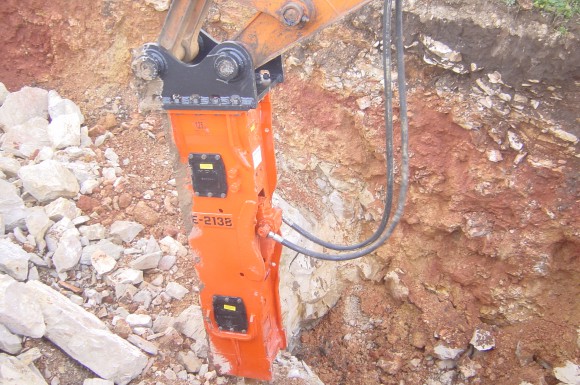

E213
E213 4,200 lbs 23 - 33 US tons
E216
E216 5,650 lbs 28 - 43 US tons

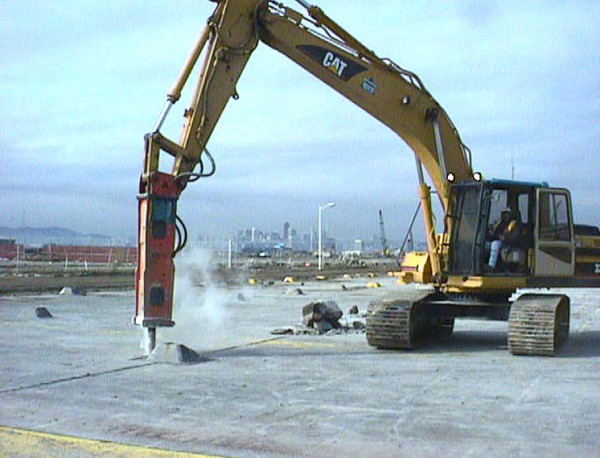

E218
E218 6,300 lbs 33 - 48 US tons
E220
E220 6,800 lbs 33 - 50 US tons

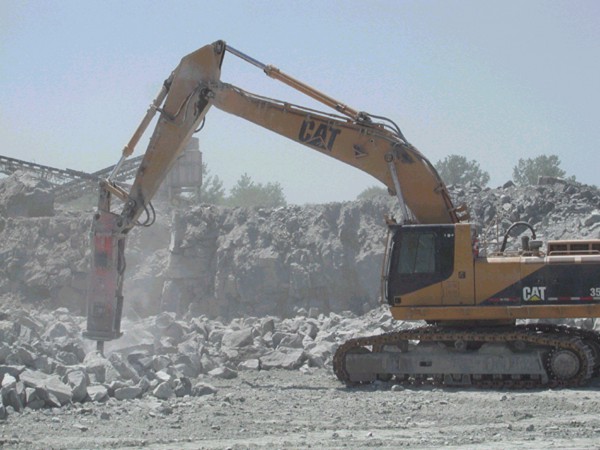

E224A
E224A 7,700 lbs 35 - 50 US tons

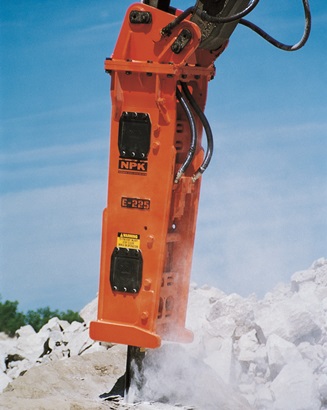

E225
E225 7,800 lbs 35 - 58 US tons
E240A
E240A 13,000 lbs 50 - 93 US tons

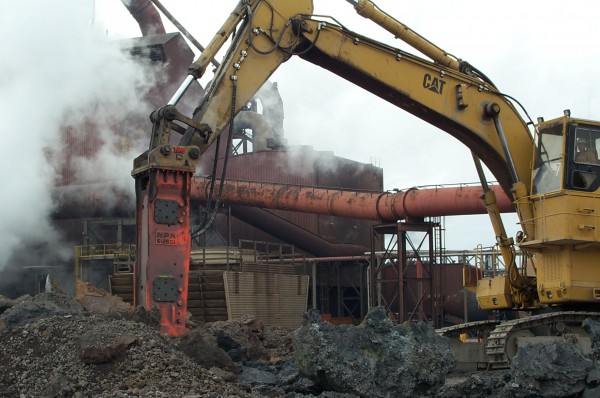

E260A
E260A 17,000 lbs 80 - 130 US tons
H06X
H06X 185 lbs 1.2 - 1.8 US tons

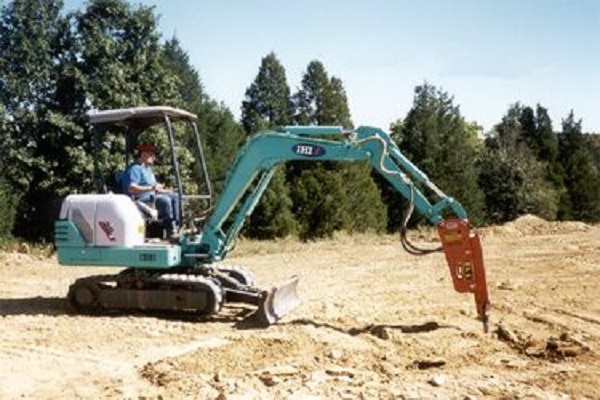

H08X
H08X 220 lbs 1.7 - 2.8 US tons

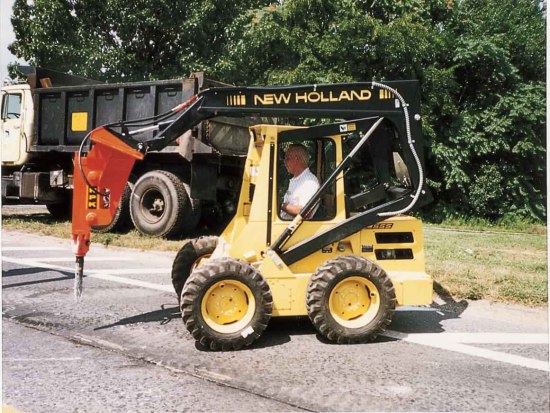

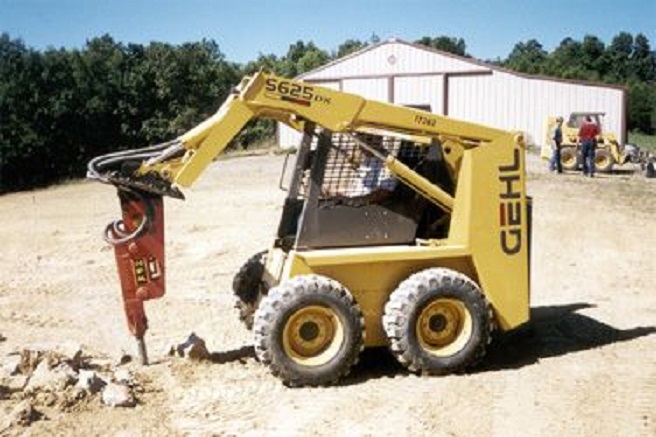

H1XA
H1XA 350 lbs 2.7 - 4.5 US tons

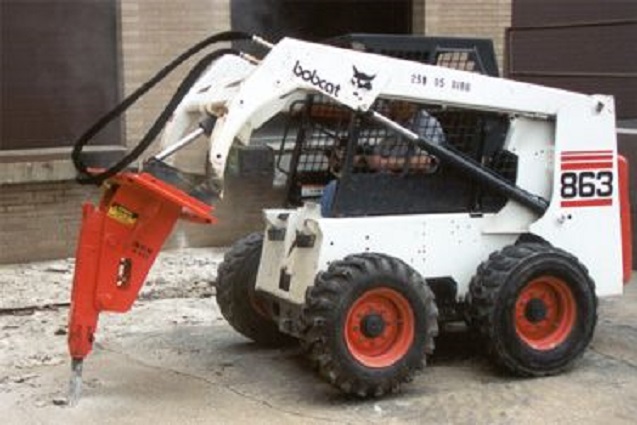

H2XA
H2XA 450 lbs 3 - 6 US tons
H3XA
H3XA 700 lbs 4 - 7 US tons
H4XE
H4XE 1,100 lbs 6 - 9.5 US tons
H4XL
H4XL 1,100 lbs 6 - 9.5 US tons

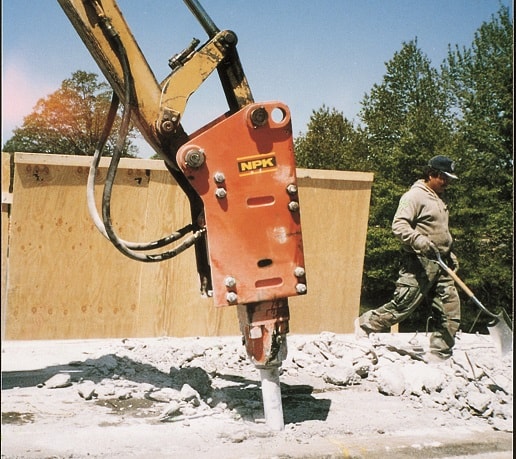

H6XA
H6XA 1,600 lbs 8 - 13 US tons
H7X
H7X 1,880 lbs 10 - 15 US tons

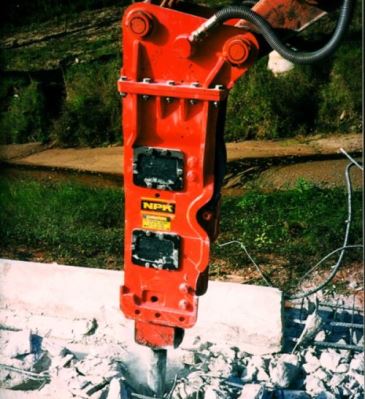

H8XA
H8XA 2,800 lbs 14 - 21 US tons

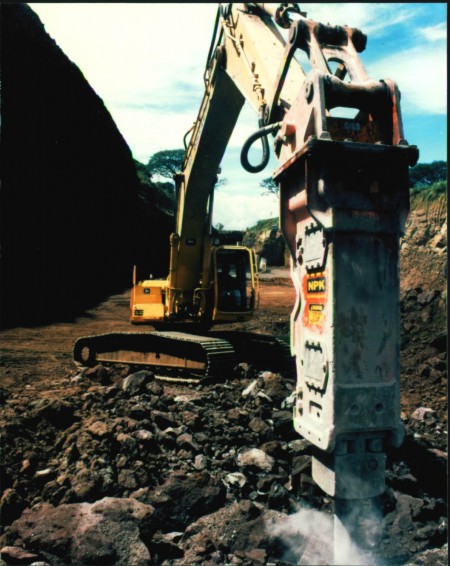

H10XB
H10XB 3,300 lbs 18 - 25 US tons

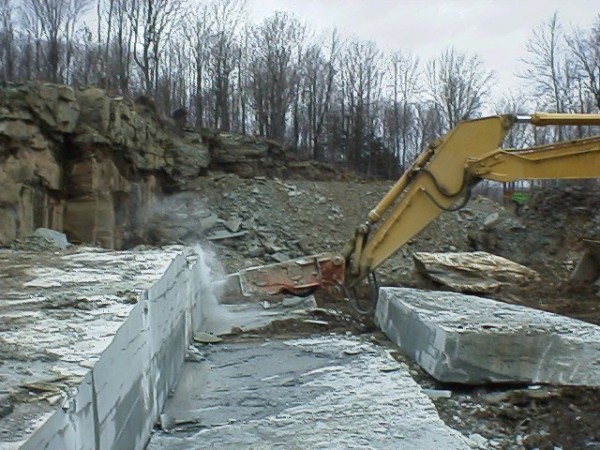

H12X
H12X 4,400 lbs 23 - 33 US tons
H16X
H16X 5,650 lbs 28 - 43 US tons

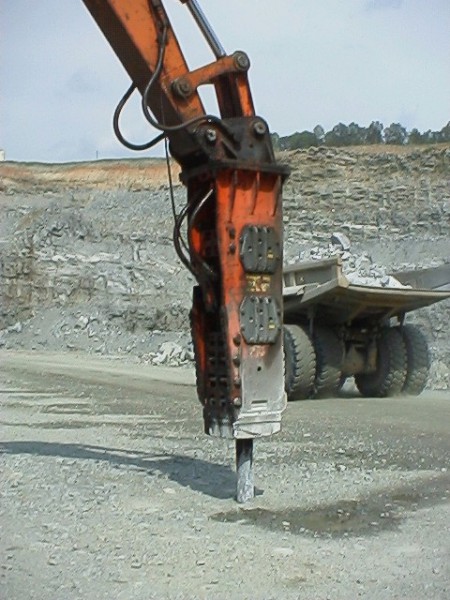

H20X
H20X 6,600 lbs 33 - 48 US tons
H30X
H30X 10,600 lbs 50 - 75 US tons
